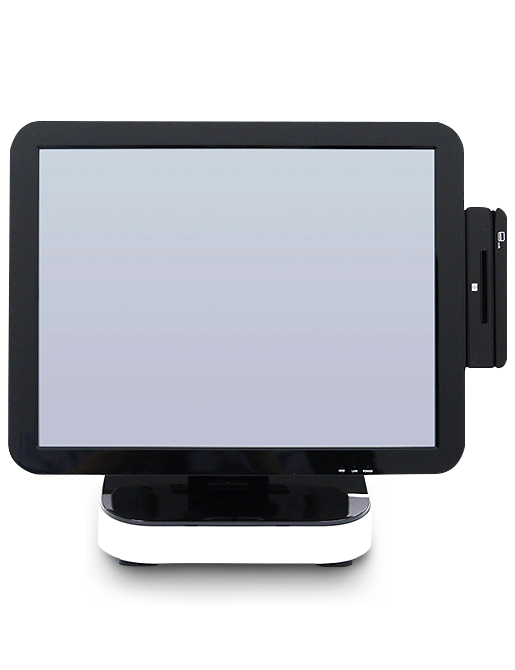

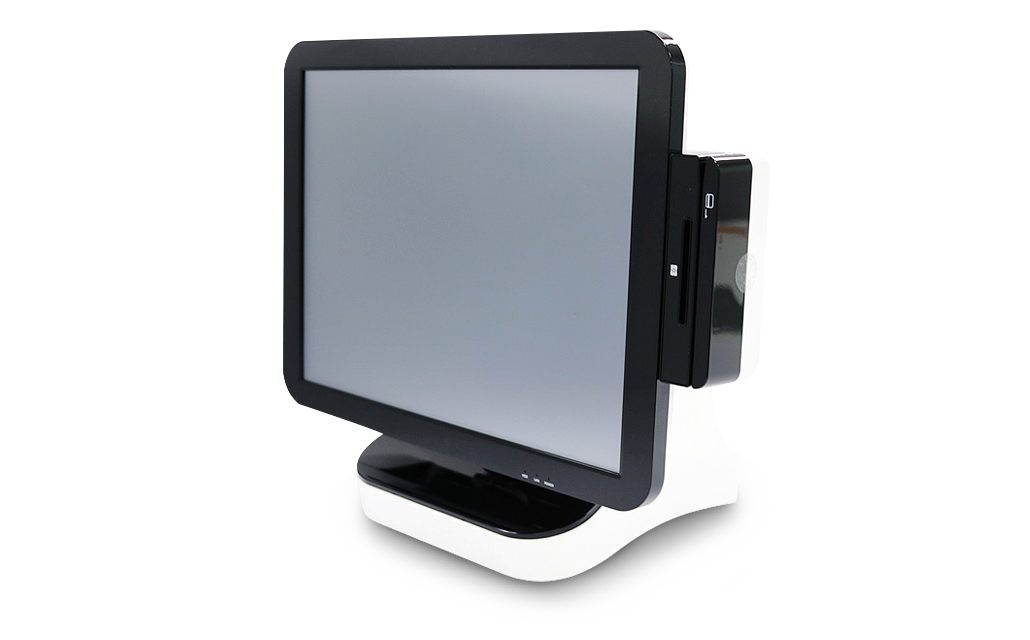

P2C T-100

사용자 중심의 POS PC2 T-100

pos-p2c-100-slide-01-2
pos-p2c-100-slide-02-2
pos-p2c-100-slide-03-3

세계 최초 좌우 I/O 배치로
효율적 관리 가능

  • 정보유출 차단을 위한
    안전한 보안모듈 적용

  • Flat Style 초슬림 디자인

  • 쉽고 직관적인 유지보수

  • 저발열, 저소음 Fanless 방식

자유로운 공간연출과
손쉬운 유지보수

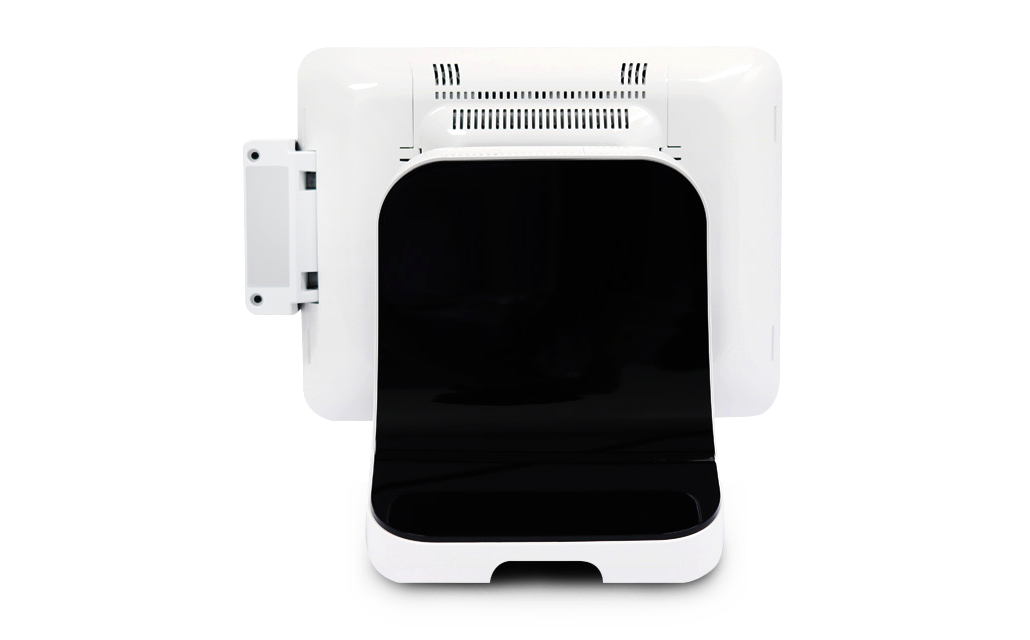

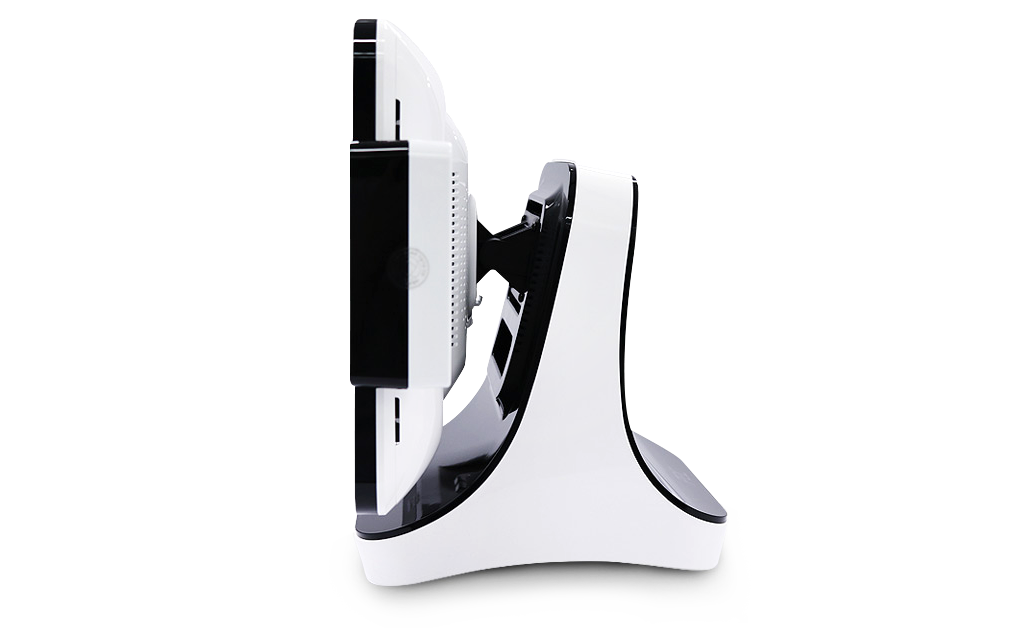

P2C T-100은 원터치로 Body와 Stand가 분리
월마운트 사용이 가능하며 주변기기 연결용 케이블 하단 처리로
깔끔한 배선정리가 가능합니다.

P2C T-100

SPECIFICATION

SPECIFICATION 목록
내용
System
Configurations
Processor Intel Celeron™ 1.8GHZ 1037U
Chipset Intel NM70 Express Chipset
Storage
Device
2.5" SATA-ⅡSSD 64GB(default) or HDD 320GB(optional)
Memory Single-Channel DDR3 Connector for 1066/800MHz x 1, default 2GB up to 4GB
Graphics Intel HD Graphics (350MHz-1GHz)
BIOS AMI BIOS
OS POSReady 7
2nd Hand disk
(for RAID)
Not Supported
Display Main Display 15" with WLED Backlight (1024 X 768), Single LVDS 24bits / Supports Tilt (0˚ ~ 53˚)
10˚ ~ 60˚Viewing Angle, 300:1 Contrast, Above 350cd/m2 Brightness
Supports 50Wired Resistive Flat or Normal Type Touch Panel
I/O Interfaces LAN 1x10/100/1000Mbps Base T Ethernet
Serial Ports 3xDB9 and 1xRJ50 Serial Ports, Powered on Pin 9 (DC+5V or DC+12V)
USB 6xUSB A type 2.0
Special USB Not Supported
VGA/
Expansion
Slot
D-SUB 155 pin Analog VGA port / miniPCI-e
Cash Drawer 1xRJ11(12v) on the Right Rear Side
Audio Ports /
Speaker Out
1xMic-in, 1xAudio-out / 1watt Speaker(Stereo) x 2EA
Options 2nd Display 10" or 15 with WLED back light (1024x768), Single LVDS 24bit or 18bit
Support 5-wired resistive touch panel(optional)/Support tilt (15˚ ~ 45˚)and swivel : 25˚
10˚ ~ 60˚Viewing Angle, 300:1 Contrast, 300cd/m2 Brightness
Customer
Display
VFD Type(20x2), Alphabet & Numeric, Supports 15˚ ~ 90˚Tilt and 25˚ Swivel
Touch Panel Support 5-wired resistive Flat Touch panel
MSR ISO7811, All Track / USB(default) and Serial (CMOS setting) interface / Bi-Directional reading, min, 1million times reading
Card reading speed 3inch to 60inch/sec
Smart Card
Reader
ISO7816 EMV level 1
Supports PC/SC (Personal Computer/Smart Card)
Dallas Reader
(i-Button)
Dallas Reader (i-Button reader)
Physical
Dimension
Dimension 354 x 246 x 339 (W x D x H,mm)
Weight 5.5(Kg)
Environment Color White&Black, All Black, White&Red, White&Orange, White&Green
Power Supply
/ Temperature
100V AC ~ 240V AC, DC 12V-5A Adaptor, 60 watt / Opreating : 0~40˚C, Storage : 0 ~ 60˚C
Humidity /
Warranty
10 ~ 80% Humidity / 2 years
Certifications CE,FCC,CB,KC
UPS Battery Not Supported
