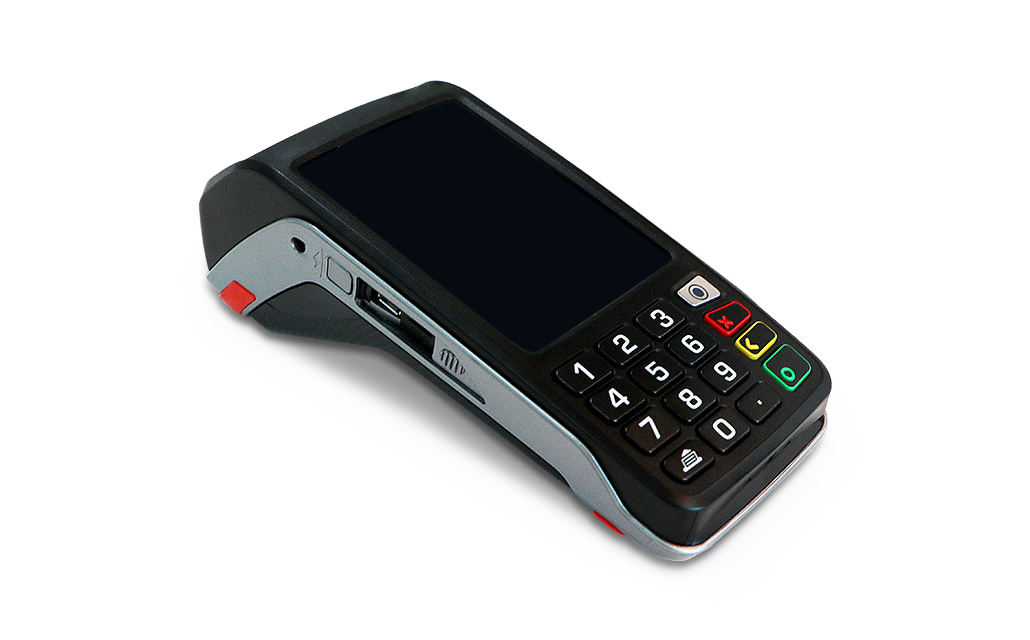

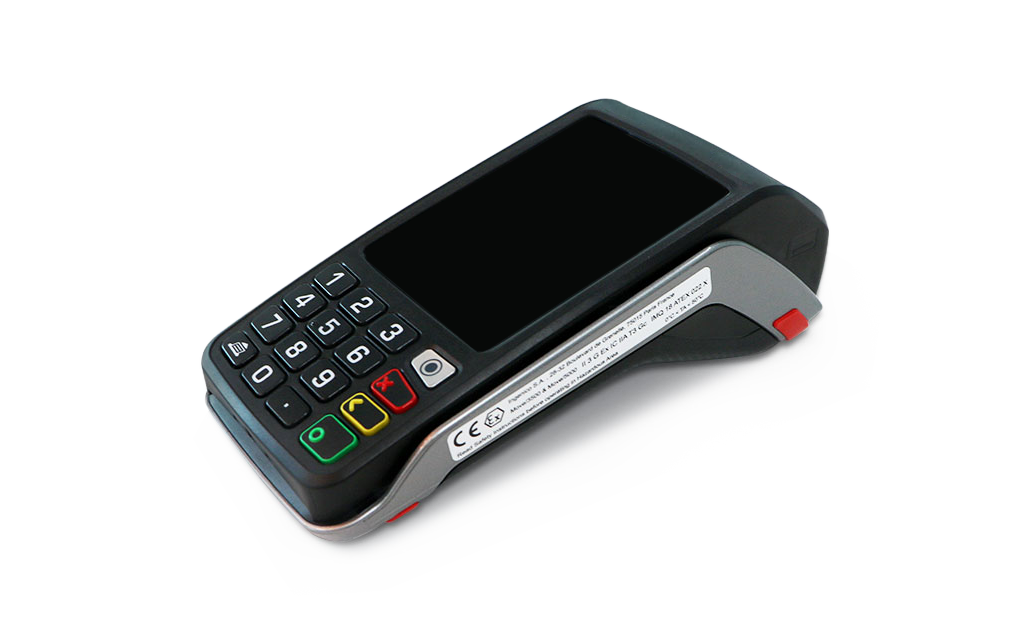

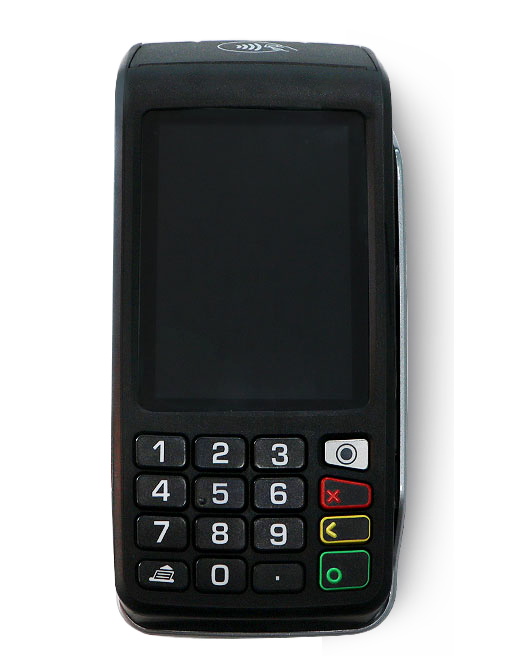

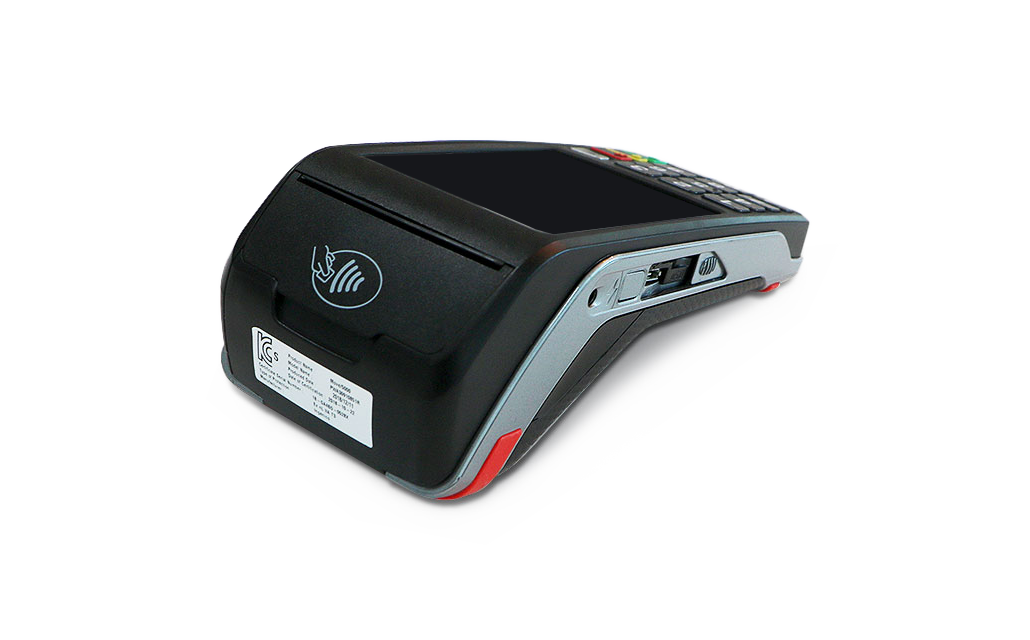

우수한 품질의 무선 단말기 스마트로 SMT-Z150
SMT-Z150은 방폭 인증 단말기로 충전소 및 주유소에서
다양한 서비스를 사용하실 수 있습니다.
Name | ||
---|---|---|
Processor | Application & Crypto processor | Cortex A5 |
Memory | Internal External |
512 MB Flash, 512 MB RAM MicroSD up to 32GB |
OS | Telium TETRA | |
SIM | SIM 1 SIM 2 |
|
SAM | 2 SAM 3rd SAM |
|
Card readers | Magstripe Smart card Contactless |
ISO 1/2/3, 500K lifespan EMV Level 1, 500K lifespan EMV Level 1 compliant |
Display | Colour | 3.5” backlit, HVGA (480x320 pixels) |
Touchscreen | Resistive | Finger & stylus (300K lifespan signature) |
Key-Pad | 16 keys, raised marking, backlit | |
Audio | Buzzer Audio Jack Speaker |
Stereo Mono |
Video | Video accelerator | H264 codec |
Data capture | Positionning Barcode reader Camera |
GPS tracking 1D/2D 5M pixels autofocus |
Thermal Printer | Speed in lines/s Paper roll cage |
up to 30 lines/s 58 mm width x Ø 40 mm 58 mm width x Ø 25 mm |
Terminal connectivity | WAN LAN Multicom |
4G and/or 3G and GPRS WiFi and/or Bluetooth WAN + LAN |
Terminal connections | USB Power Supply |
Host & Slave Dedicated power Jack |
Battery | Li-ion | 2900mAh |
Terminal size | Ø 40 mm Ø 25 mm |
169 x 78 x 57 mm (6.6x3.1x2.2”) 160 x 78 x 47 mm (6.3x3.1x1.9”) |
Weight | Terminal + Battery | 320 g (11 oz) |
Environment | Operating Temperature Storage Temperature Operating Humidity |
-10°C to +50°C (14°F to 122°F) -20°C to +55°C (-4°F to 131°F) 85% non-condensing at +40°C (104°F) |
Accessory | Privacy shield Car Charger Docking-station |
-10°C to +50°C (14°F to 122°F) Factory Mounted Charger 2 RS232 USB Host USB Slave Modem Ethernet 10/100 Base T Bluetooth |
Security | PCI PTS 5.x & 4.x online & offline certified |
